Ford® Bronco Fuel Tanks

Part # Description Related parts
4239 1966-1970 Ford® Bronco 11 gallon front auxiliary tank without EMS fittings. Includes new lock ring and O-ring. Dimensions 34" x 13" x 8". Sending unit # FMSU-1
Strap #FMGTSS-2
Lock ring # FMLR-1
O-ring # FMOR-1
4240 1971-1976 Ford® Bronco 11 gallon front auxiliary tank with EMS fitting. May fit early 1977 models. Includes new lock ring and O-ring. Dimensions 34" x 13" x 8". Sending unit #FMSU-1
Strap #FMGTSS-2
Lock ring # FMLR-1
O-ring # FMOR-1
4241 1966-1970 Ford® Bronco 13 gallon rear main tank without EMS fittings. Includes new lock ring and O-ring. Dimensions 21" x 20" x 10". Sending unit #FMSU-1
Strap #FMGTSR-2
Lock ring # FMLR-1
O-ring # FMOR-1
4242 1971-1976 Ford® Bronco 13 gallon rear main tank with EMS fittings. May fit early 1977 models. Includes new lock ring and O-ring. Dimensions 21" x 20" x 10". Sending unit #FMSU-1
Strap #FMGTSR-2
Lock ring # FMLR-1
O-ring # FMOR-1

Ford® Full-Size Bronco Fuel Tanks

Part # Description Related parts

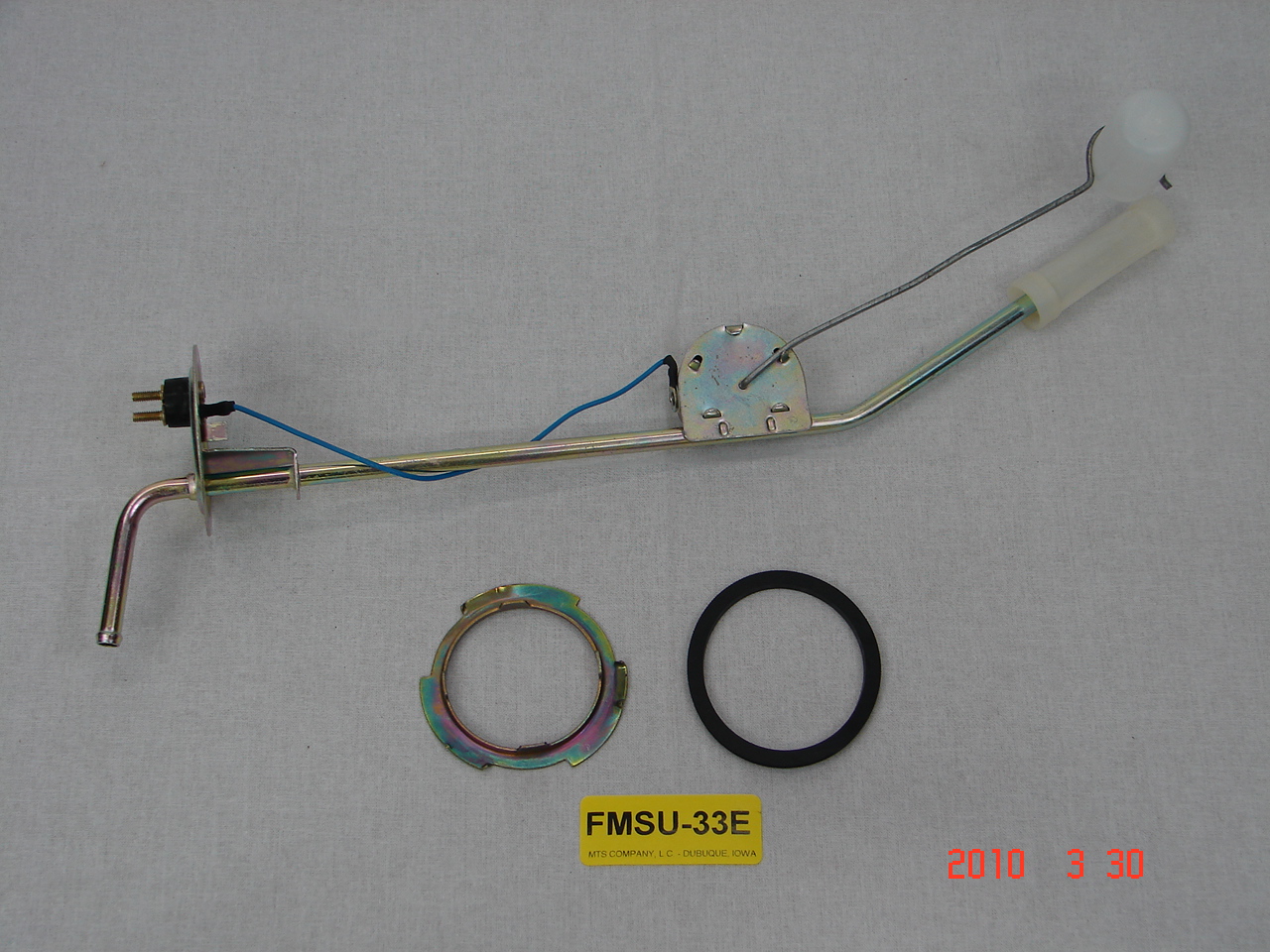

4251A 1978-1979 Ford® Bronco Full-Size 33 gallon tank. Vent pipe is toward the FRONT of the Bronco and has an EMS hole on top of the tank. Includes new lock ring and O-ring. Dimensions 21" x 31" x 15". Sending unit # ('78-'84) FMSU-33E
Lower Straps #FMGTSR-33

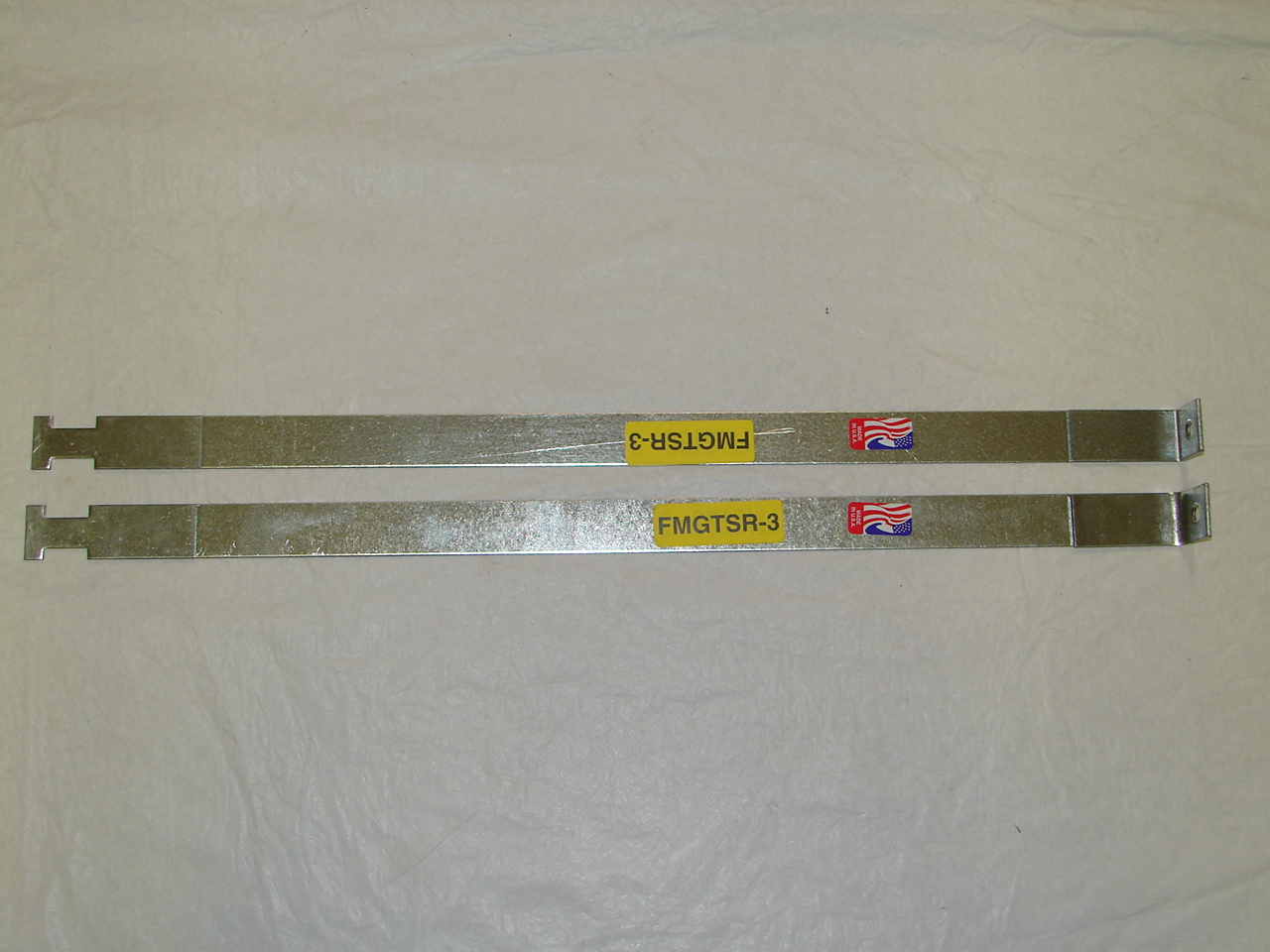

Upper Straps #FMGTSR-3
EMS Valve w/out Grommet # EMSV-1
EMS Valve w/ Grommet # EMSV-2
Grommet # FMEMSGR-1
Lock ring # FMLR-1
O-ring # FMOR-1
4251B 1978-1979 Ford® Bronco Full-Size 25 gallon tank. Vent pipe is towards the FRONT of the Bronco and has an EMS hole on top of the tank. Includes new lock ring and O-ring. Dimensions 21" x 31" x 12". Replaces # D8TZ9002D. Lower Straps # FMGTSR-25
Upper Straps #FMGTSR-3
EMS Valve w/out Grommet # EMSV-1
EMS Valve w/ Grommet # EMSV-2
Grommet # FMEMSGR-1
Lock ring # FMLR-1
O-ring # FMOR-1
4251C 1978-1979 Ford® Bronco Full-Size 33 gallon tank. Vent pipe is towards the REAR of the Bronco but does NOT have an EMS hole. Includes new lock ring and O-ring. Dimensions 21" x 31" x 15". Sending unit # ('78-'84) FMSU-33E
Lower Straps #FMGTSR-33
Upper Straps #FMGTSR-3
Lock ring # FMLR-1
O-ring # FMOR-1
4251D 1978-1979 Ford® Bronco Full-Size 25 gallon tank. Vent pipe is towards the REAR of the Bronco but does NOT have an EMS hole. Includes new lock ring and O-ring. Dimensions 21" x 31" x 12". Replaces # D8TZ9002A. Lower Straps # FMGTSR-25
Upper Straps #FMGTSR-3
Lock ring # FMLR-1
O-ring # FMOR-1
4251E 1980-1986 Ford® Bronco Full-Size 25 gallon tank. This tank does NOT have a vent pipe, but does have an EMS hole on top of the tank. Includes new lock ring and O-ring. Dimensions 21" x 31" x 12". Lower Straps #FMGTSR-25
Upper Straps #FMGTSR-3
External fuel pump #
('85-'89) EFPK-3266
EMS Valve w/out Grommet # EMSV-1
EMS Valve w/ Grommet # EMSV-2
Grommet # FMEMSGR-1
Lock ring # FMLR-1
O-ring # FMOR-1
4251S 1980-1989 Ford® Bronco Full-Size 33 gallon tank. This tank does NOT have a vent pipe, but does have an EMS hole on top of the tank and a 2" sending unit hole. Includes new lock ring and O-ring. Dimensions 21" x 31" x 15". Sending unit # ('78-'84) FMSU-33E
Lower Straps #FMGTSR-33
Upper Straps #FMGTSR-3
External Fuel pump #
('85-'89)
EFPK-3266
EMS Valve w/out Grommet # EMSV-1
EMS Valve w/ Grommet # EMSV-2
Grommet # FMEMSGR-1
Lock ring # FMLR-1
O-ring # FMOR-1
4251L 1985-1996 Ford® Bronco Full-Size 33 gallon tank. This tank does NOT have a vent pipe, but does have an EMS hole on top of the tank, fuel bowl and 3 5/8" sending unit hole. Includes new lock ring and O-ring. Dimensions 21" x 31" x 15". Lower Straps # FMGTSR-33
Upper Straps # FMGTSR-3
Internal Fuel pump #
('90-'96) EFPK-3281
External Fuel pump #
('85-89) EFPK-3266
EMS Valve w/out Grommet # EMSV-1
EMS Valve w/ Grommet # EMSV-2
Grommet # FMEMSGR-1
Lock ring # FMLR-2
O-ring # FMOR-2

Ford® Bronco II Fuel Tanks

Part # Description Related parts

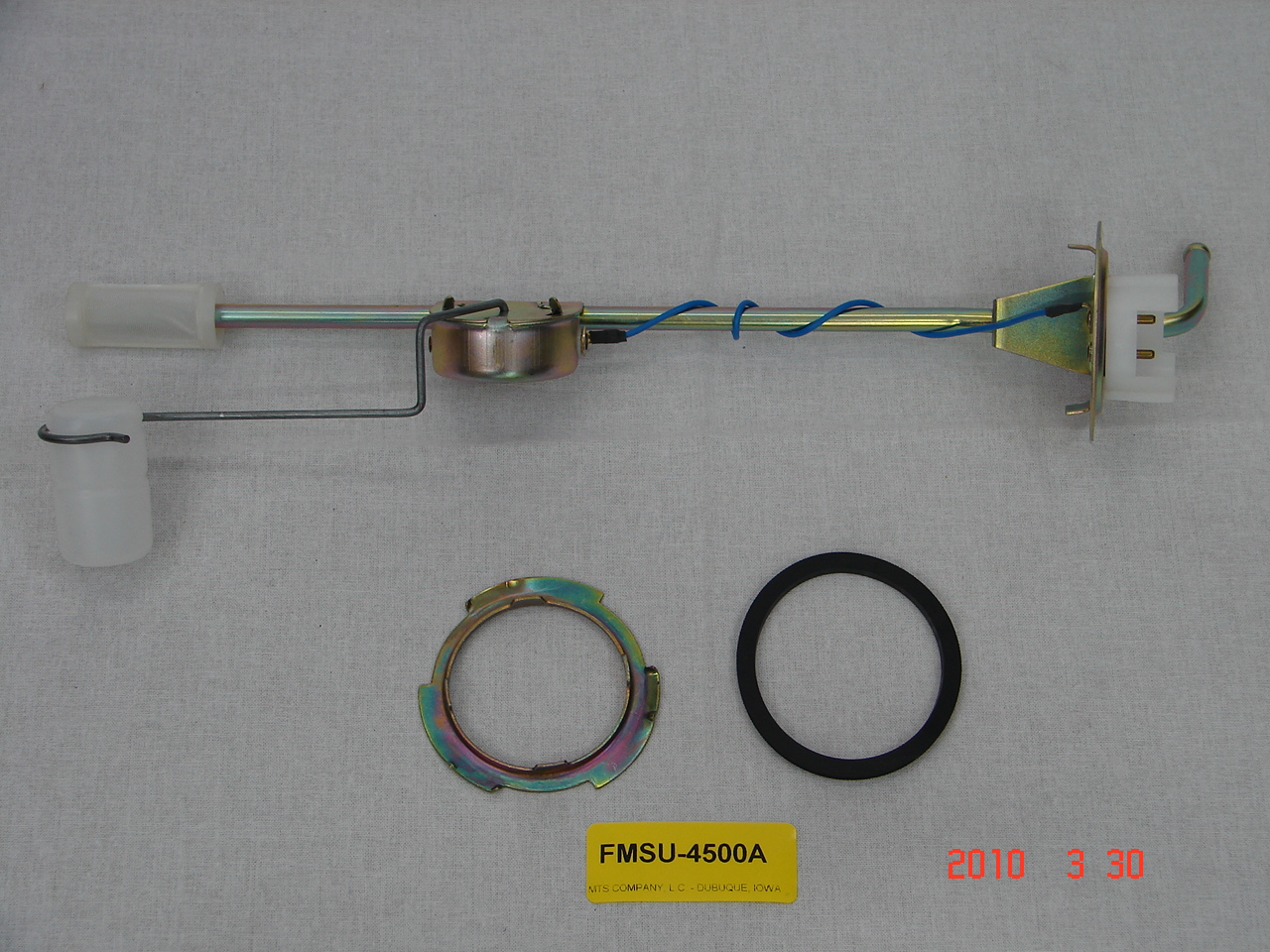

4500 1984 Ford® Bronco II 23 gallon tank. Includes lock ring and O-ring. Dimensions 24" x 29" x 15". Sending unit # FMSU-4500A
EMS Valve w/out Grommet # EMSV-1
EMS Valve w/ Grommet # EMSV-2
Grommet # FMEMSGR-1
Lock ring # FMLR-1
O-ring # FMOR-1

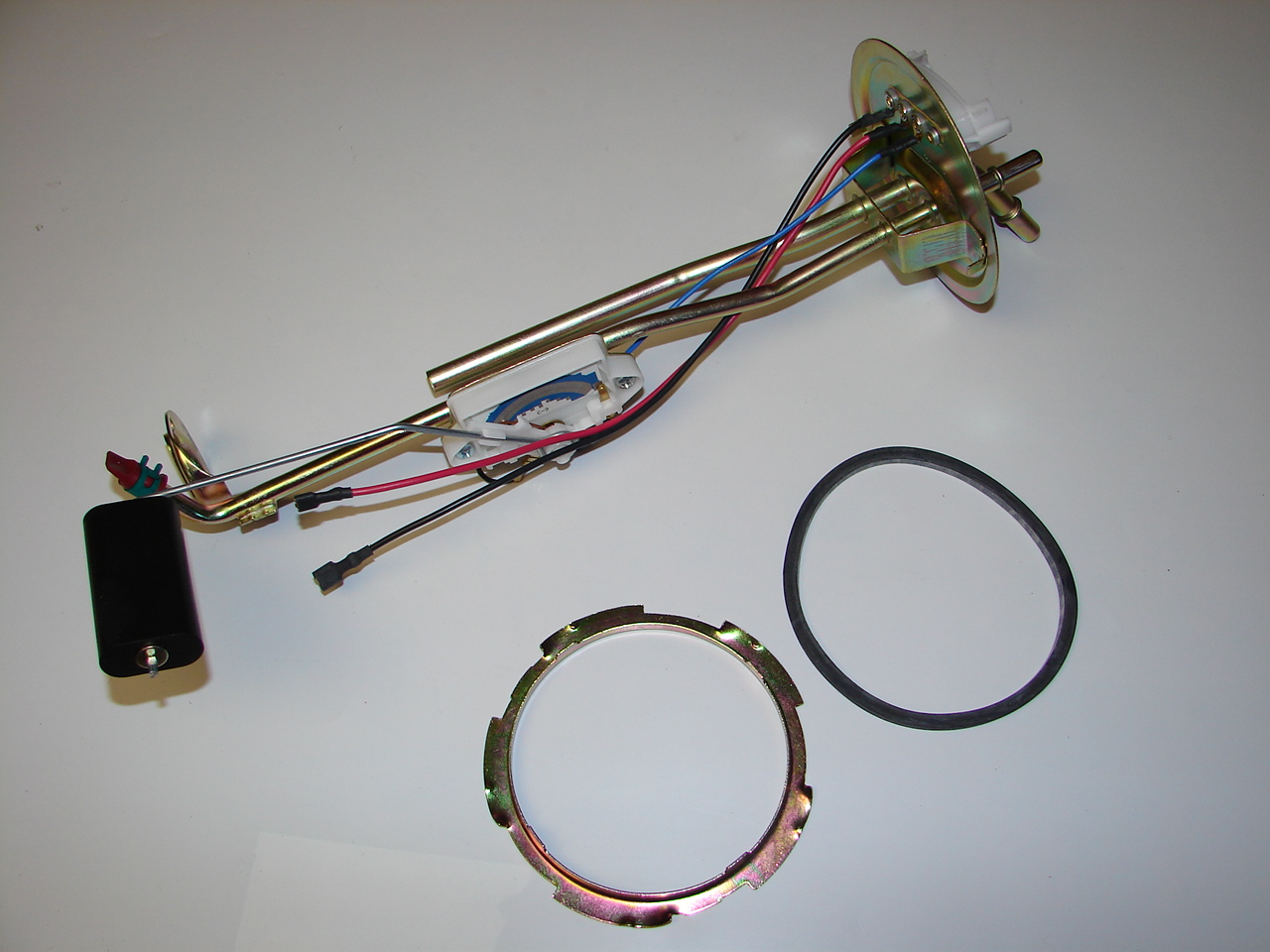

4600 1985-1990 Ford® Bronco II 23 gallon tank. Includes lock ring and O-ring. Dimensions 24" x 29" x 15". Sending unit w/o F.I. # (1985) FMSU-4600C
Sending unit w/ F.I., w/out pump # ('86-'88) FMSU-4600
Sending unit w/ F.I., w/ pump # ('86-'88) FMSU-4600P
Internal Fuel pump # ('85-'89) EFPK-3206
External Fuel pump # ('85-'89) EFPK-3266

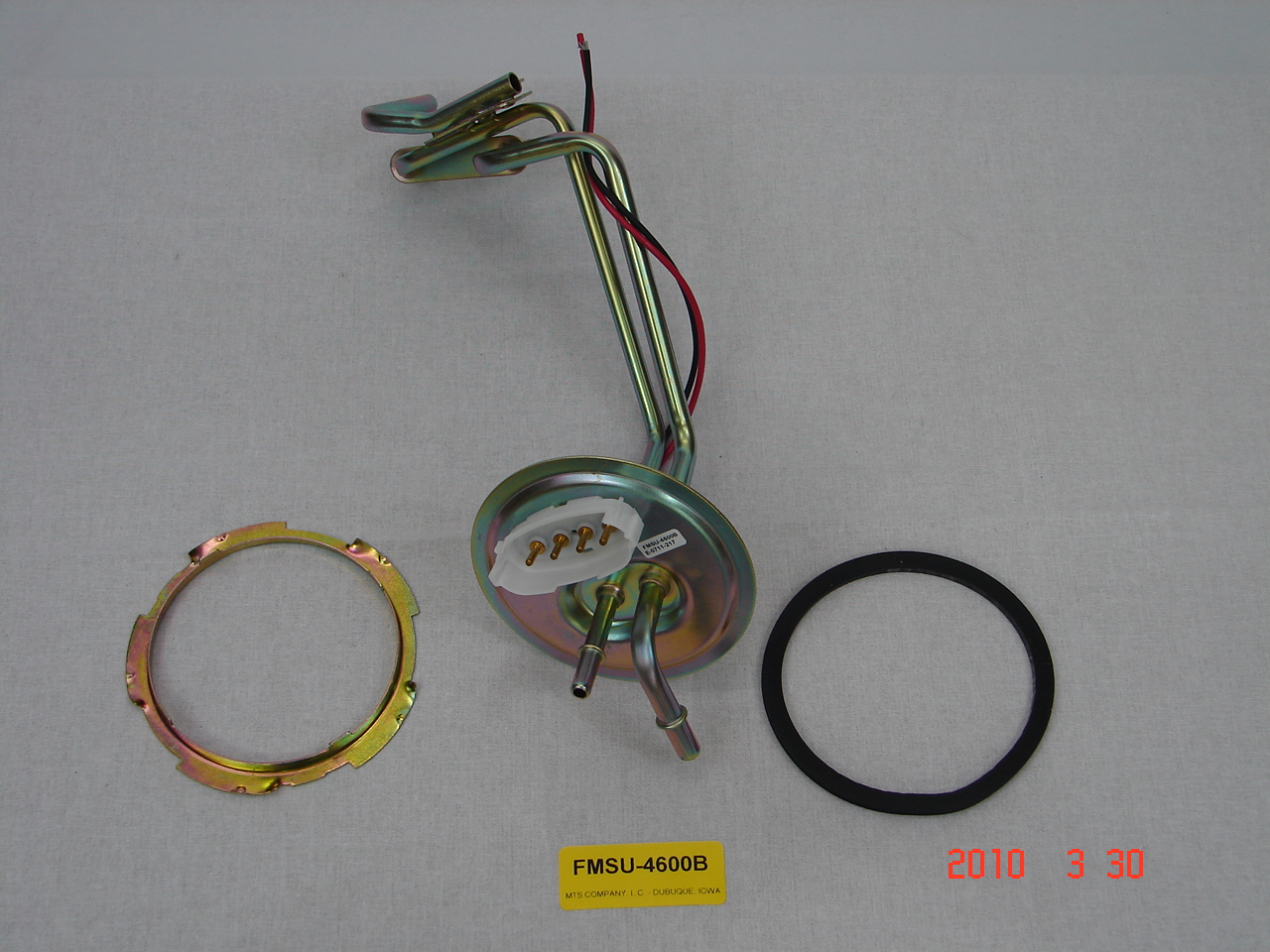

Sending unit w/ F.I., w/out module # ('89-'90) FMSU-4600B
Sending unit w/ F.I., w/ module # ('89-'90) FMSU-4600BM
Sending unit module w/ pump # ('90-96) FMSUM-5
Internal Fuel pump # ('90-'96) EFPK-3281
EMS Valve w/out Grommet # EMSV-1
EMS Valve w/ Grommet # EMSV-2
Grommet # FMEMSGR-1
Lock ring # FMLR-2
O-ring # FMOR-2

Ford® EMS Valve and Grommet

Part # Description Related parts
EMSV-1
EMSV-2
FMEMSGR-1
1973-1996 Ford® Full-Size Pickup
1973-1996 Ford® Full-Size Bronco
1984-1990 Ford® Bronco II
1983-1994 Ford® Ranger
1991-1994 Ford® Explorer
EMS valve grommet. Replaces part # F6TZ-9B076-AA.
Tank #4250
Tank #4252
Tank #4253
Tank #4252A
Tank #4252B
Tank #4216B
Tank #4252A
Tank #4251A
Tank #4251B
Tank #4251E
Tank #4251S
Tank #4500
Tank #4600
