Chevy/GMC® Fuel Tanks

Chevy/GMC® Express & Savanna Cutaway Vans

Part # Description Related parts
2805
**NEW**

2006-2016 Chevy/GMC® Express/Savanna 2500, 3500 and 4500 Cutaway Van 55-gal. rear/aft axle DIESEL fuel only tank. Approx. dimensions 39 5/8" x 33" x 12 3/4".

The use of the four black metal spacers (OEM# 20969742) and bolts (OEM # 11519831) from the original tank are required for installation. Do NOT use the OEM sending unit gasket.

Tank includes our specifically designed sending unit gasket & steel retaining rings for the sending unit and valves. Replaces # 19210021, 37183472.

This tank does NOT include a sending unit, valves, valve gasket(s), mounting straps or mounting spacers.


2808
**NEW**

2004-2016 Chevy/GMC® Express/Savanna 2500, 3500 and 4500 Cutaway Van 55-gal. rear/aft axle GAS and FLEX fuel only tank. Approx. dimensions 39 5/8" x 33" x 12 3/4".

The use of the four black metal spacers (OEM# 20969742) and bolts (OEM # 11519831) from the original tank are required for installation. Do NOT use the OEM sending unit gasket.

Tank includes our specifically designed sending unit gasket & steel retaining rings for the sending unit and valves. Replaces # 20969743 and possibly 87848344, 19122202.

This tank does NOT include a sending unit, valves, valve gasket(s), mounting straps or mounting spacers.

Chevy/GMC® Full-Size Pickups

Part # Description Related parts
2050

1973-1981 Chevy/GMC® Full-Size C/K Series Pickup 20-gal. fuel tank with 8' box. Fits passengers side/right side and/or drivers side/left side. Approx. 54" long.

Includes new lock ring and O-Ring. Replaces # 11382992.

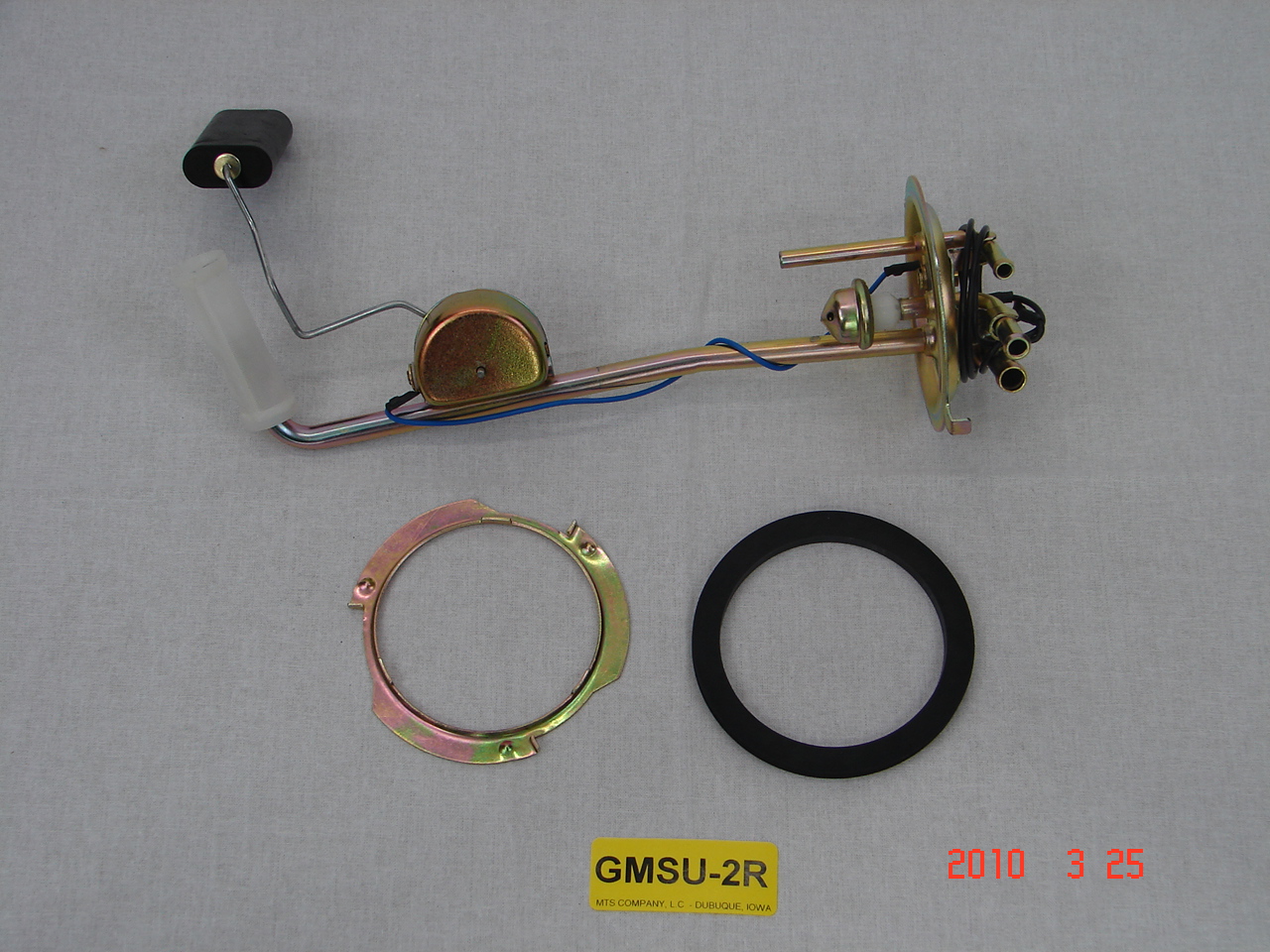

Sending unit # GMSU-2R

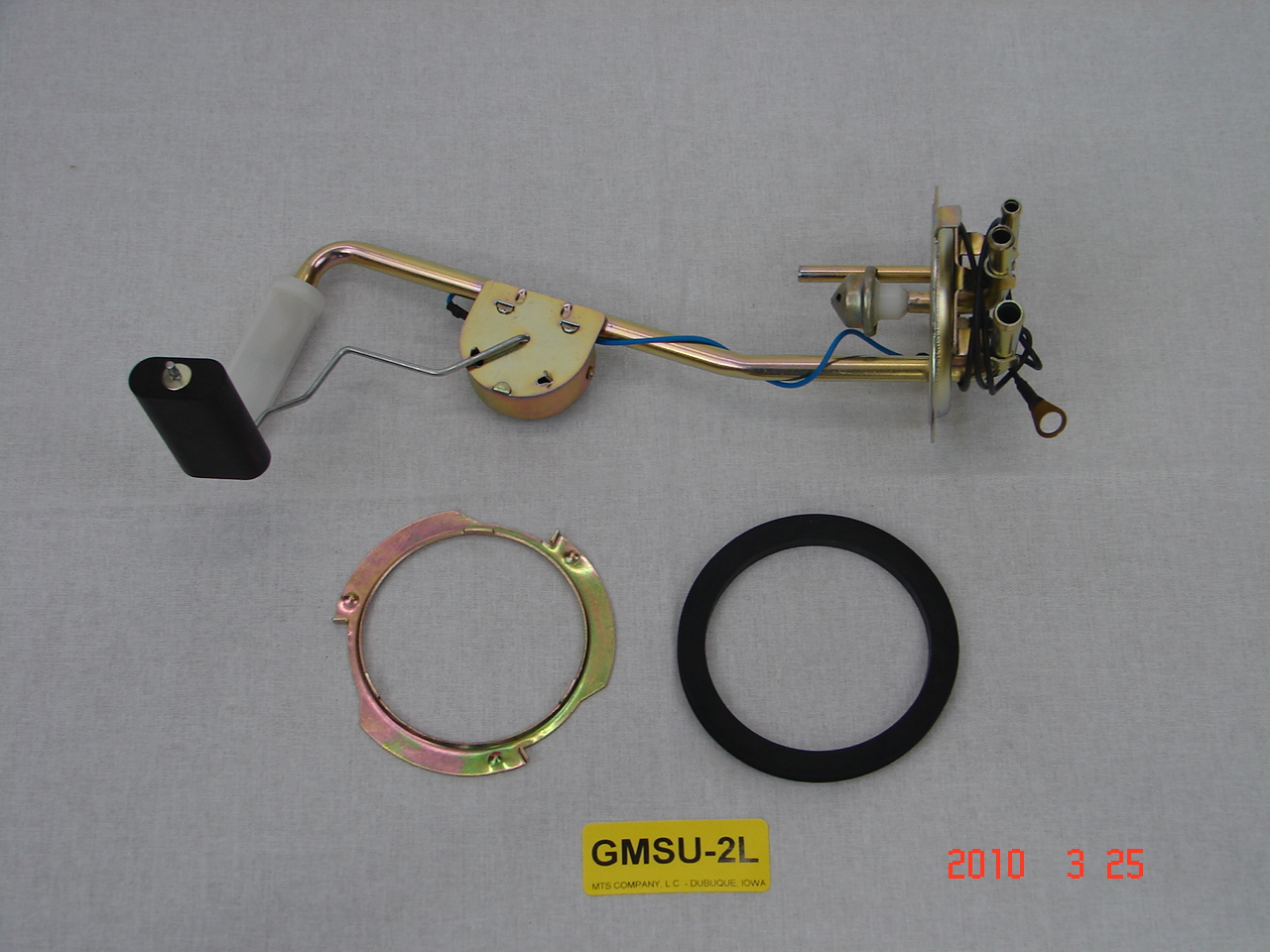

Sending unit # GMSU-2L

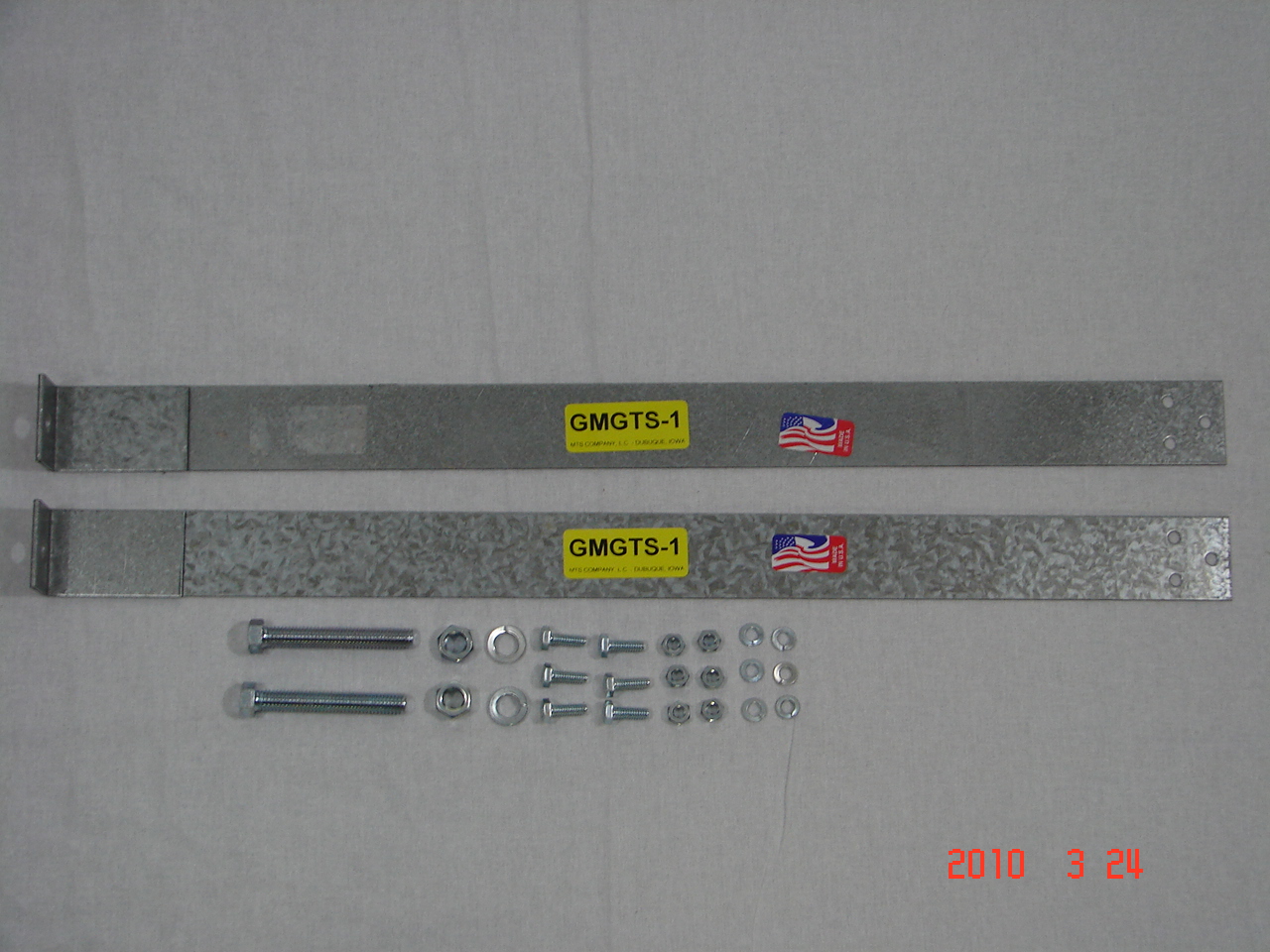

Strap # GMGTS-1
Filler Hose # GMFH-5 ('73-'78)
Hose Clamps #HC-63024
Filler Hose # GMFH-6 ('79-'81)
Hose Clamps #HC-63024
Lock ring # GMLR-1
O-ring # GMOR-1

2050B

1973-1981 Chevy/GMC® Full-Size C/K Series Pickup 16-gal. fuel tank with short wheel base. Fits passengers side/right side and/or drivers side/left side and some long wheel base dual tank pickups. Approx. 40" long.

Includes lock new ring and O-Ring. Replaces # 6263397.

Sending unit # GMSU-2R
Sending unit # GMSU-2L
Strap # GMGTS-1
Filler Hose # GMFH-5 ('73-'78)
Hose Clamps #HC-63024
Filler Hose # GMFH-5F ('73-'76)
Filler Hose # GMFH-5FR('73-'76)
Hose Clamps #HC-63024
Filler Hose # GMFH-6 ('79-'81)
Hose Clamps #HC-63024
Lock ring # GMLR-1
O-ring # GMOR-1

2050A 1982-1986 Chevy/GMC® Full-Size C/K Series Pickup 20-gal. fuel tank with 8' box. Fits passengers side/right side and/or drivers side/left side. Approx. 54" long.

Includes new lock ring and O-Ring. Replaces # 112382992.

Sending unit # GMSU-2R
Sending unit # GMSU-2L
Strap # GMGTS-1
Lock ring # GMLR-1
O-ring # GMOR-1

2050C

1982-1986 Chevy/GMC® Full-Size C/K Series Pickup 16-gal. fuel tank with short wheel base. Fits passengers side/right side and/or drivers side/left side and some long wheel base dual tank pickups. Approx. 40" long.

Includes lock new ring and O-Ring. Replaces # 4040786.

Sending unit # GMSU-2R
Sending unit # GMSU-2L
Strap # GMGTS-1
Lock ring # GMLR-1
O-ring # GMOR-1

2025G

1988-1996 Chevy/GMC® Full-Size C/K Series Pickup 25-gal. inside the frame fuel tank with a GAS engine and 6' or 8' boxes. Approx. 45" long with a built-in fuel bowl.

Does NOT fit the 1 ton or larger trucks.

Includes new lock ring and O-Ring. Replaces #'s 15079918, 15149849.

Gas Sending Unit w/out pump #

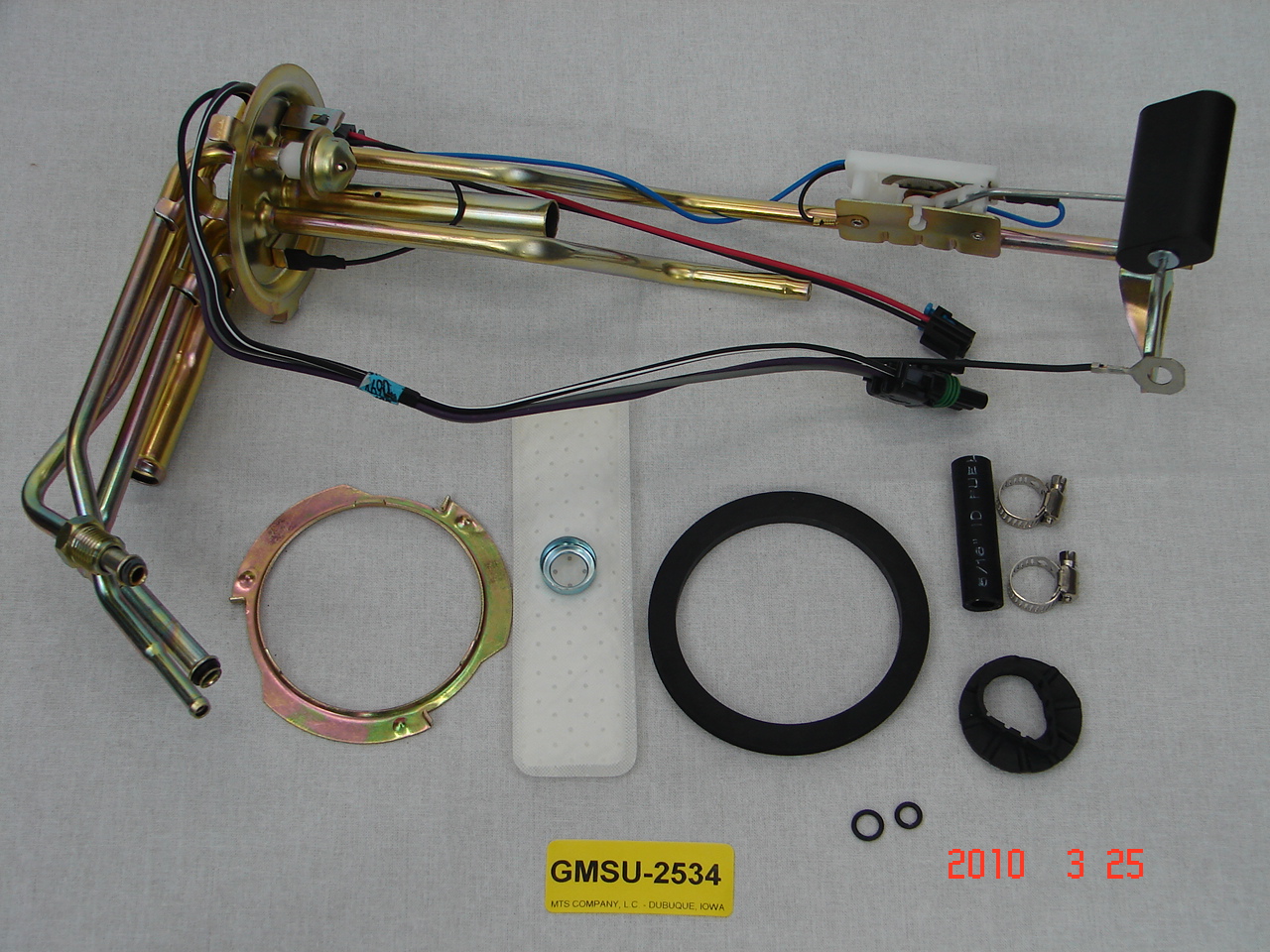

GMSU-2534 ('88-'95)
Gas Sending Unit w/ pump #
GMSU-2534P ('88-'95)

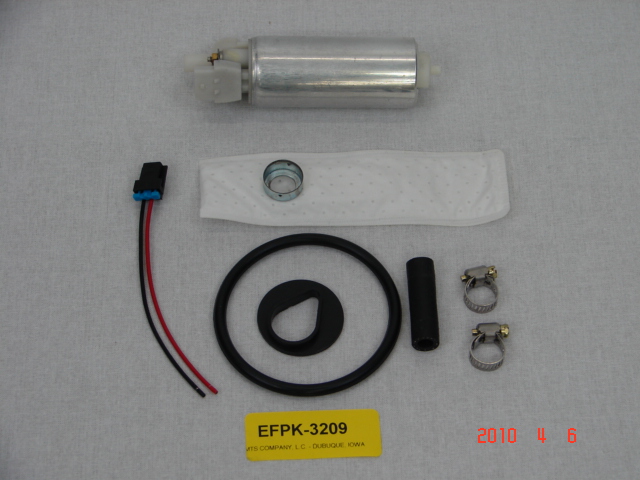

Fuel pump # EFPK-3209
Gas Sending Unit w/out pump #
GMSU-2534A ('96-'97)
Gas Sending Unit w/ pump #
GMSU-2534AP ('96-'97)
Fuel pump # EFPK-3225

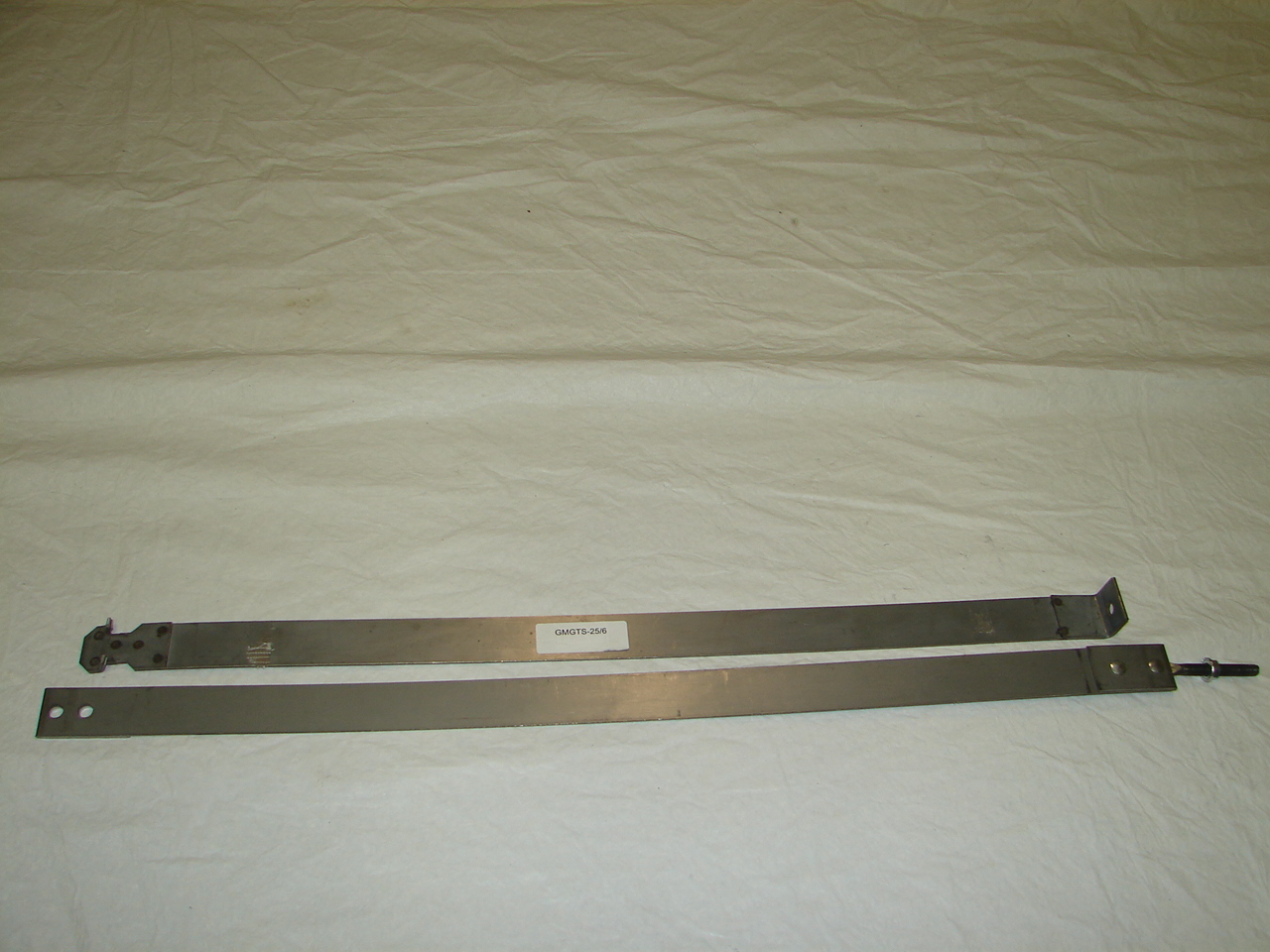

Strap # GMGTS-25/6

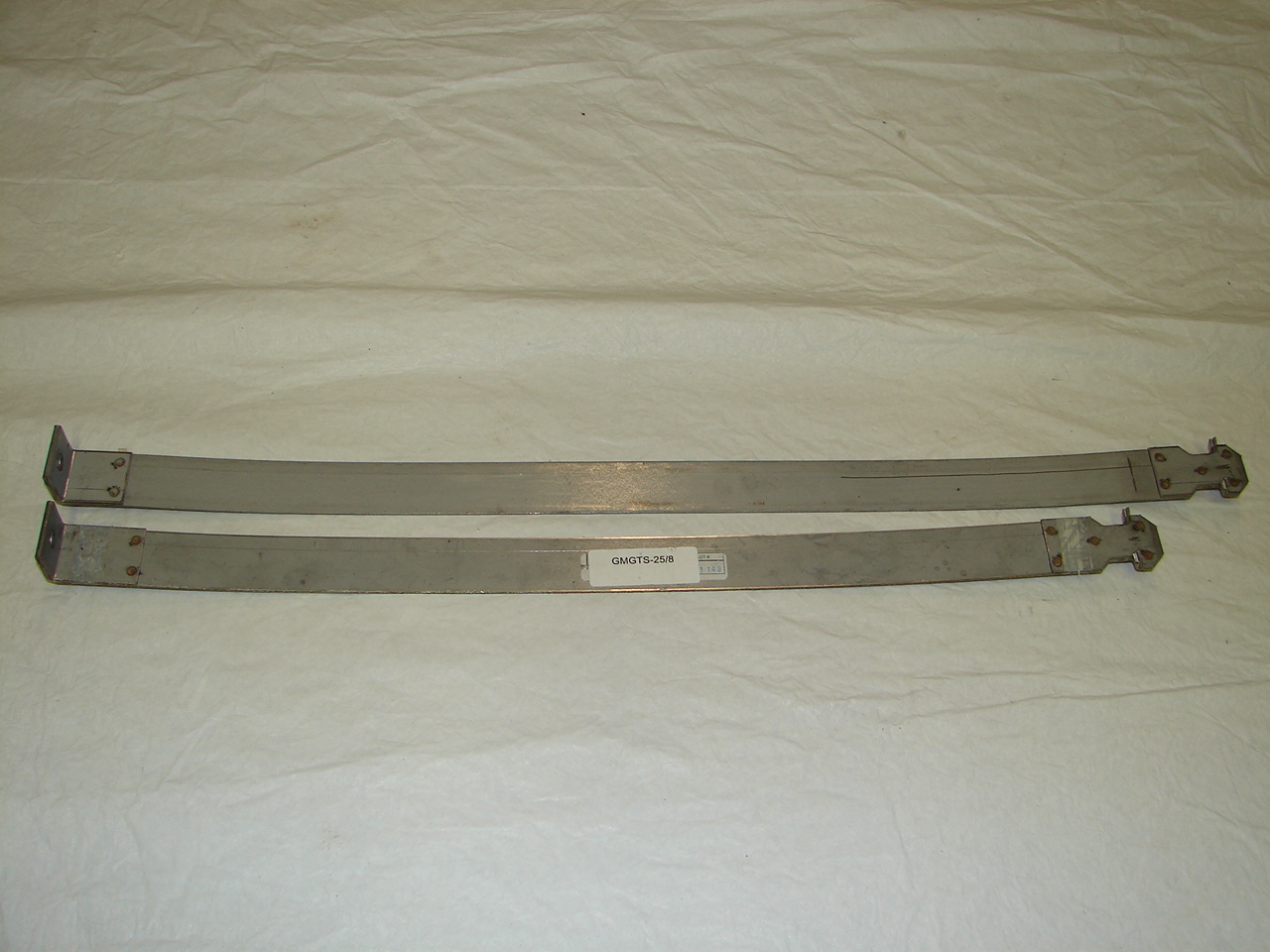

Strap # GMGTS-25/8
Lock ring # GMLR-1
O-ring # GMOR-1

2025D

1988-2000 Chevy/GMC® Full-Size C/K Series Pickup 25 gallon inside the frame fuel tank with a DIESEL engine and 6' or 8' boxes. Approx. 45" long with a built-in fuel bowl.

Does NOT fit the 1 ton or larger trucks.

Includes new lock ring and O-Ring. Replaces # 15636251.

Strap # GMGTS-25/6
Strap # GMGTS-25/8
Lock ring # GMLR-1
O-ring # GMOR-1

2034G

1988-1996 Chevy/GMC® Full-Size C/K Series Pickup 34-gal. inside the frame fuel tank with a GAS engine and 6' or 8' boxes. Approx. 61" long with a built-in fuel bowl.

Does NOT fit the 1 ton or larger trucks.

Includes new lock ring and O-Ring. Replaces #'s .

Gas Sending Unit w/out pump #
GMSU-2534 ('88-'95)
Gas Sending Unit w/ pump #
GMSU-2534P ('88-'95)
Fuel pump # EFPK-3209
Gas Sending Unit w/out pump #
GMSU-2534A ('96-'97)
Gas Sending Unit w/ pump #
GMSU-2534AP ('96-'97)
Fuel pump # EFPK-3225

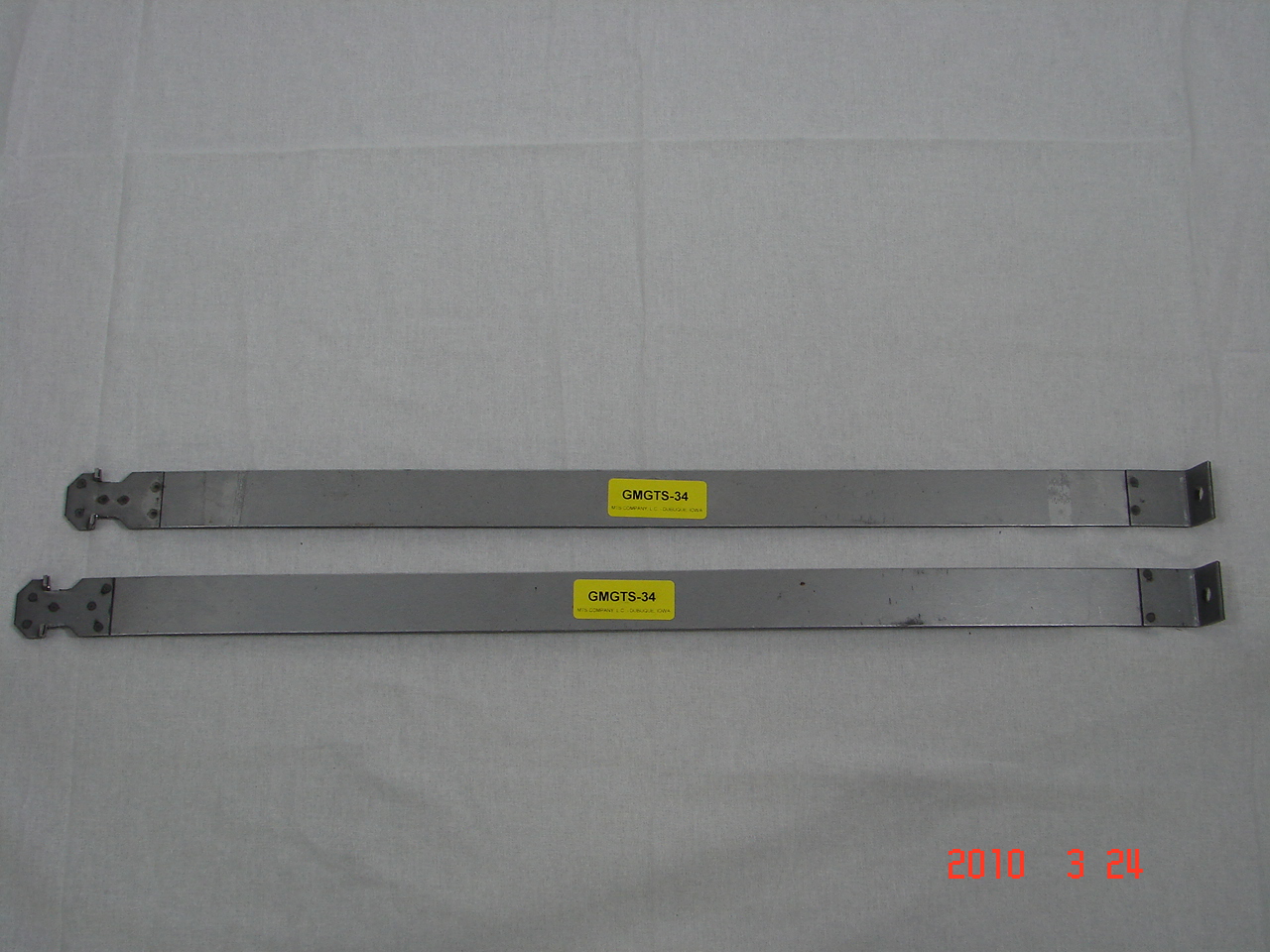

Strap # GMGTS-34
Lock ring # GMLR-1
O-ring # GMOR-1

2034D 1988-2000 Chevy/GMC® Full-Size C/K Series Pickup 34-gal. inside the frame fuel tank with a DIESEL engine and 6' or 8' boxes. Approx. 61" long witha built-in fuel bowl.

Does NOT fit the 1 ton or larger trucks.

Includes new lock ring and O-Ring. Replaces #'s 15017934.

Strap # GMGTS-34
Lock ring # GMLR-1
O-ring # GMOR-1

Chevy® Full-Size Blazer and GMC® Suburban

Part # Description Related parts
2042

1971-1972 Full-Size Chevy® Blazer and GMC® Suburban 21-gal. inside the frame fuel tank. Approx. dimensions 29" x 14" x 17".

Includes new lock ring and O-Ring.

*Call for 1969-1970 tank application.

Additional picture: pic 2

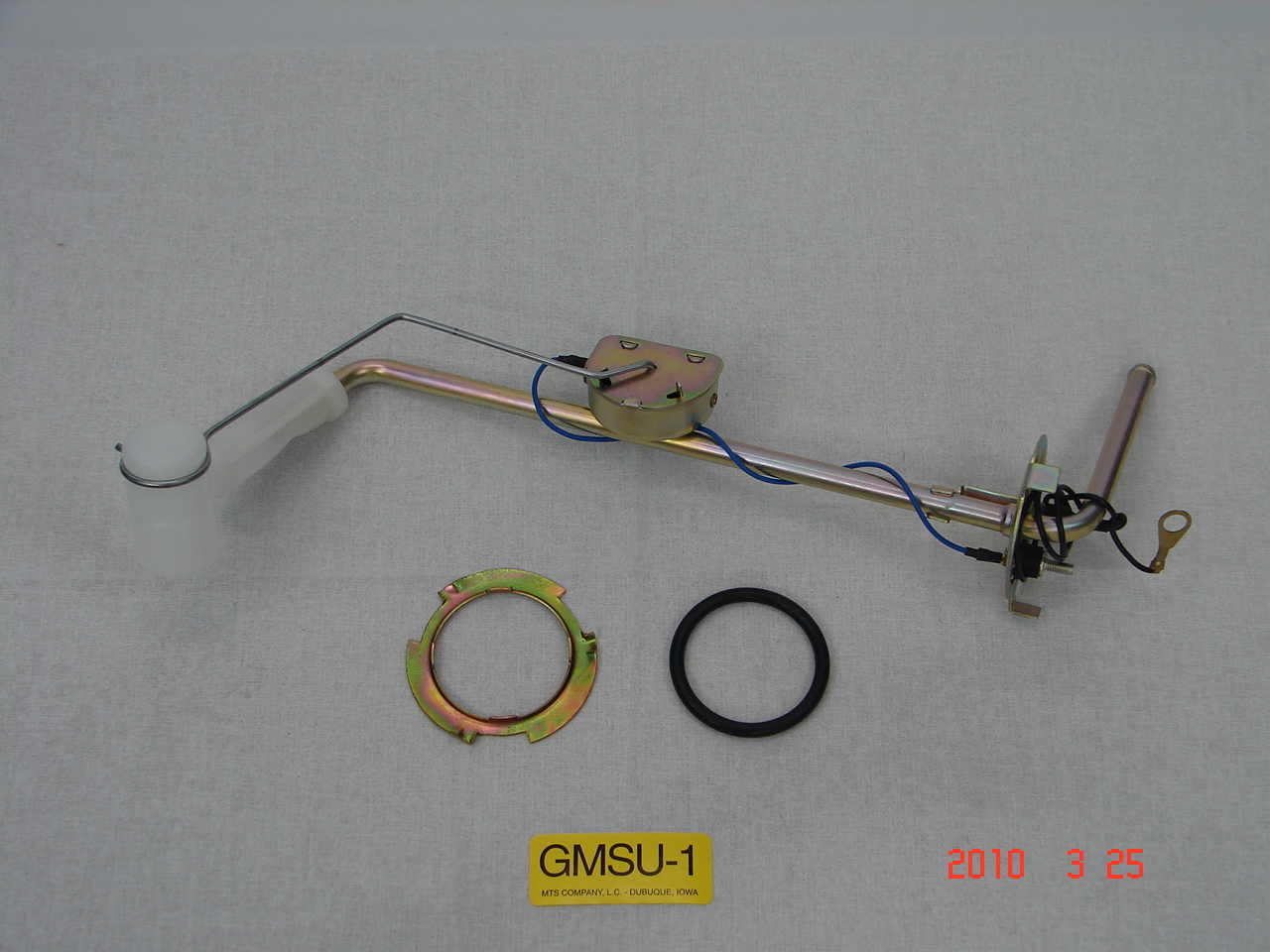

Sending unit # GMSU-1(90-0 Ohm range)

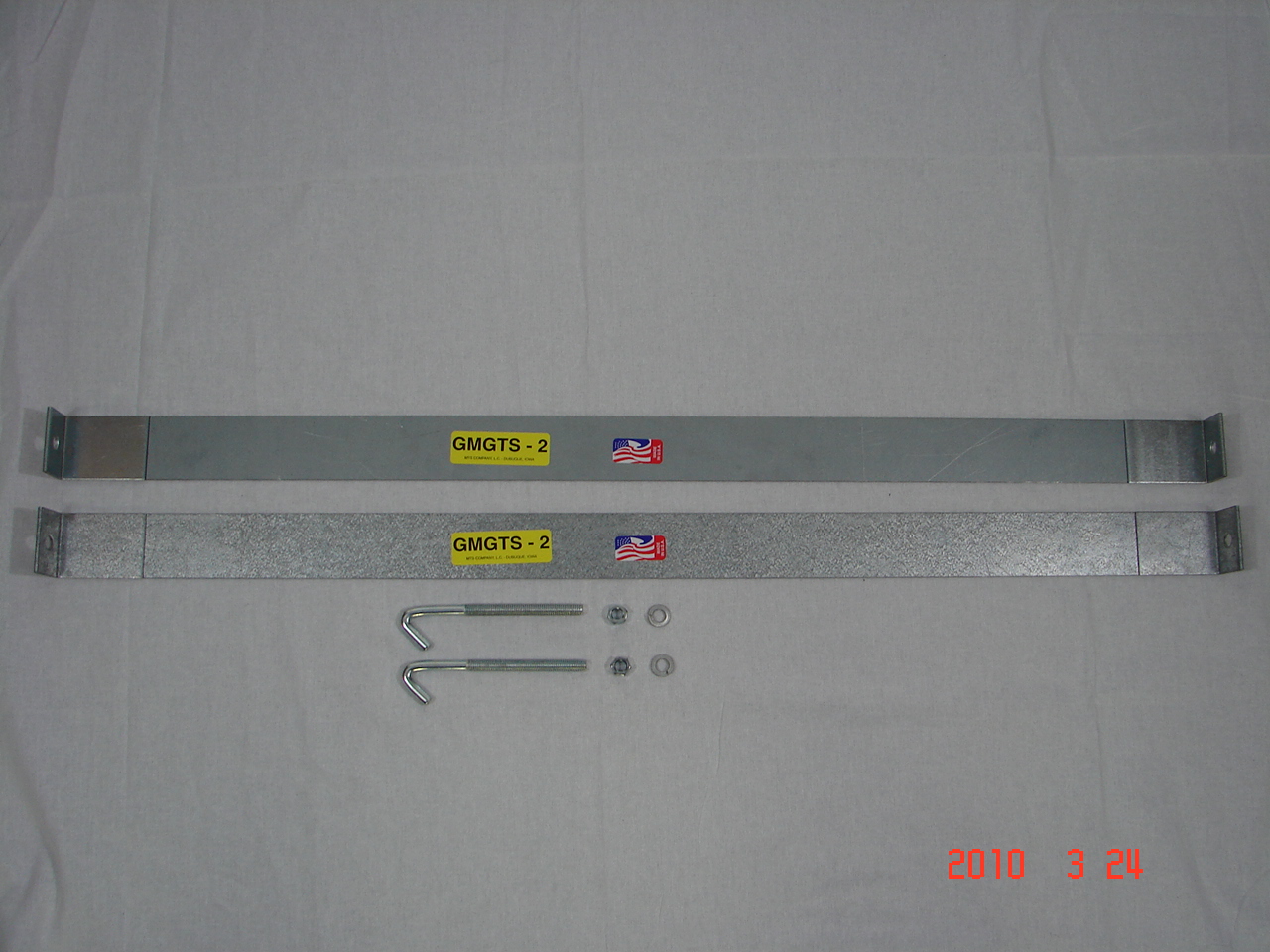

Strap # GMGTS-2
Lock ring # JWLR-1
O-ring # GMOR-2

2225

1973-1981 Full-Size Chevy®/GMC® C/K Blazer/Suburban/Jimmy 25-gal. fuel tank with a built-in fuel bowl. Approx. dimensions 26 1/2" x 26 1/2" x 9 3/4".

Includes new lock ring and O-Ring. Replaces # 475428.

Additional pictures: 1 1/4" Filler Neck & Fuel Bowl

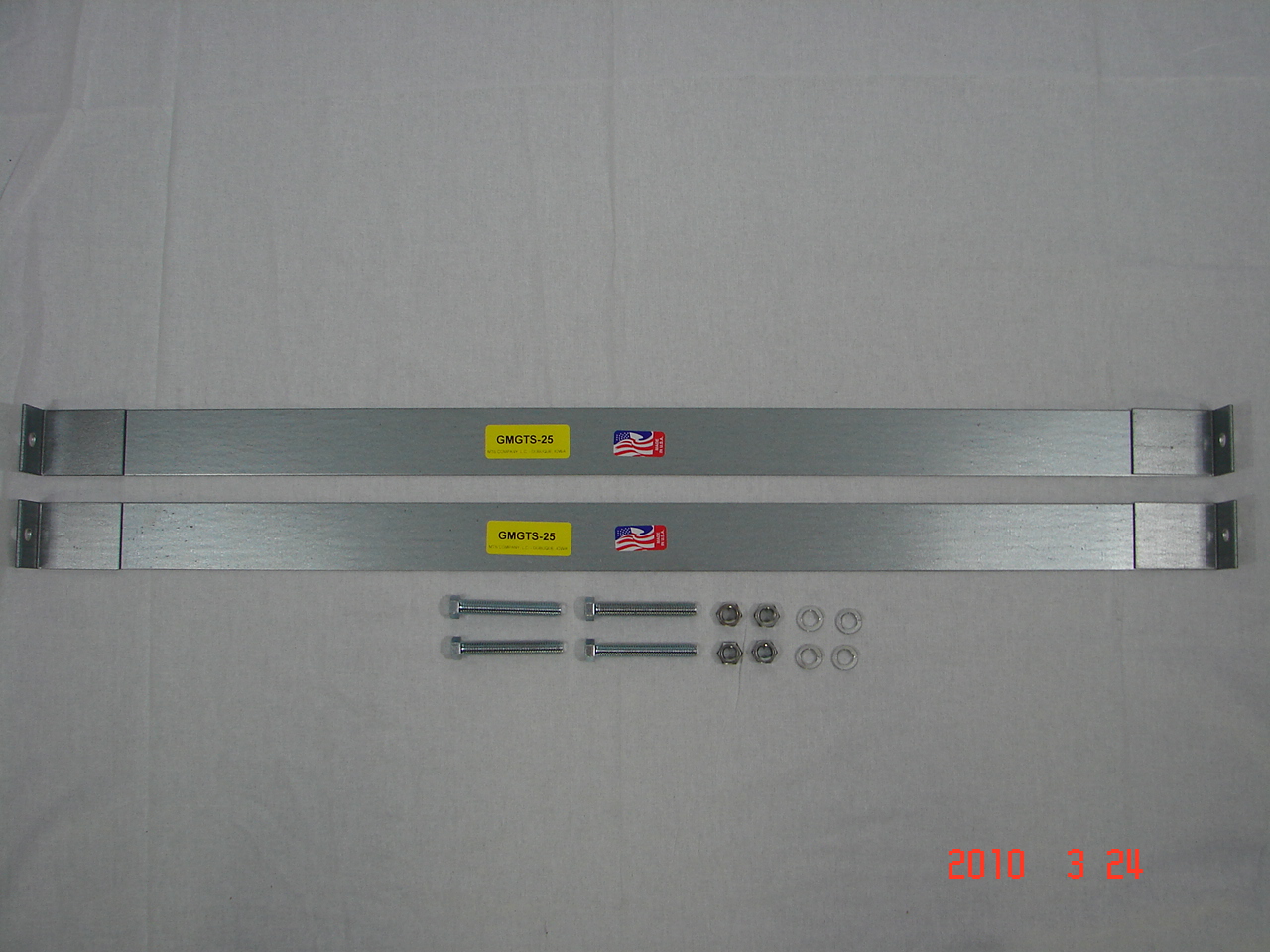

Strap # GMGTS-25
Lock ring # GMLR-1
O-ring # GMOR-1
2231

1973-1981 Full-Size Chevy®/GMC® C/K Blazer/Suburban/Jimmy 31-gal. fuel tank with a built-in fuel bowl. Approx. dimensions 26 1/2" x 26 1/2" x 13 1/4".

Includes new lock ring and O-Ring. Replaces # 475427.

Additional pictures: 1 1/4" Filler Neck & Fuel Bowl

Sending unit #

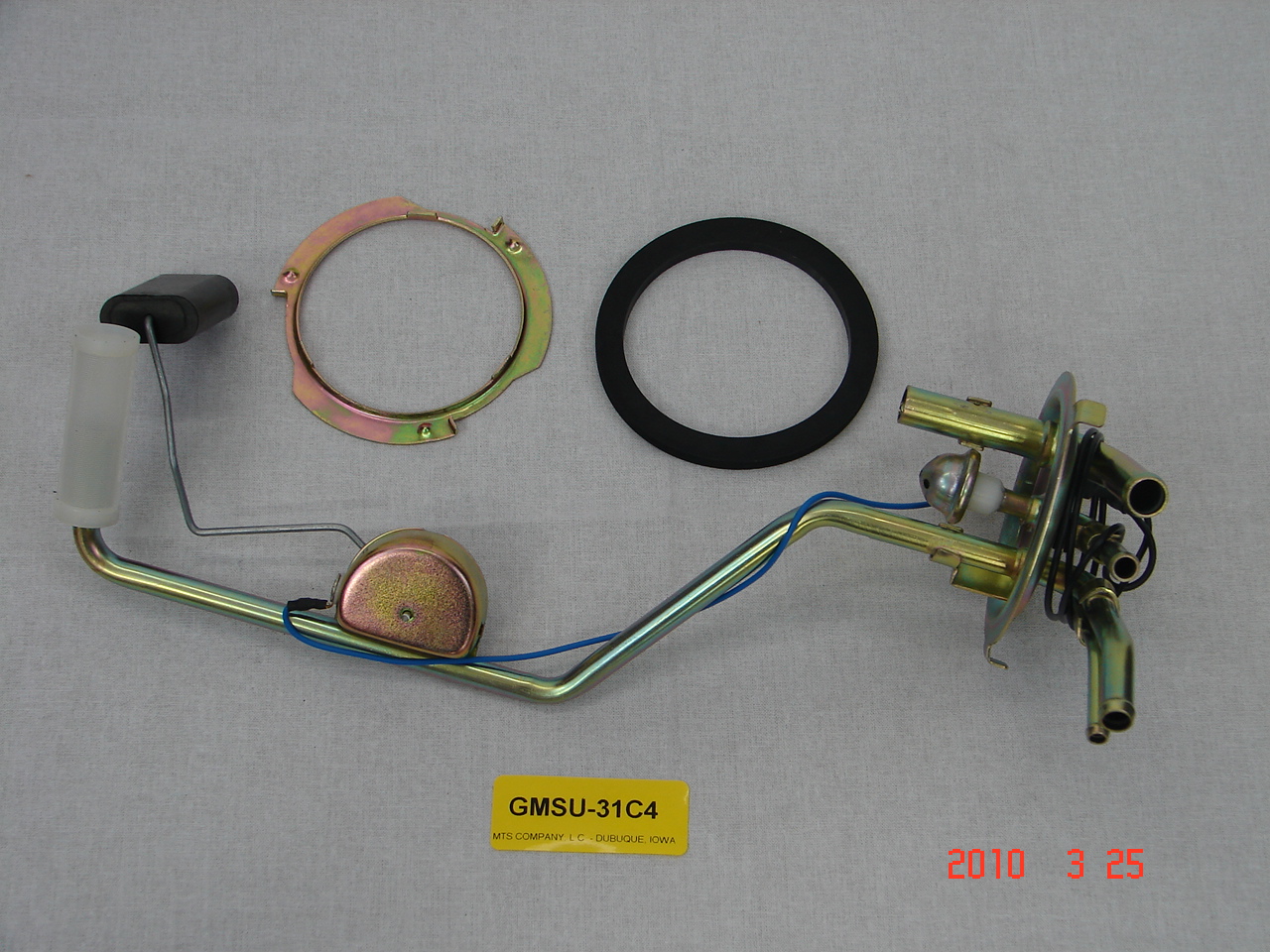

GMSU-31C4 ('73-'77 4 pipe)

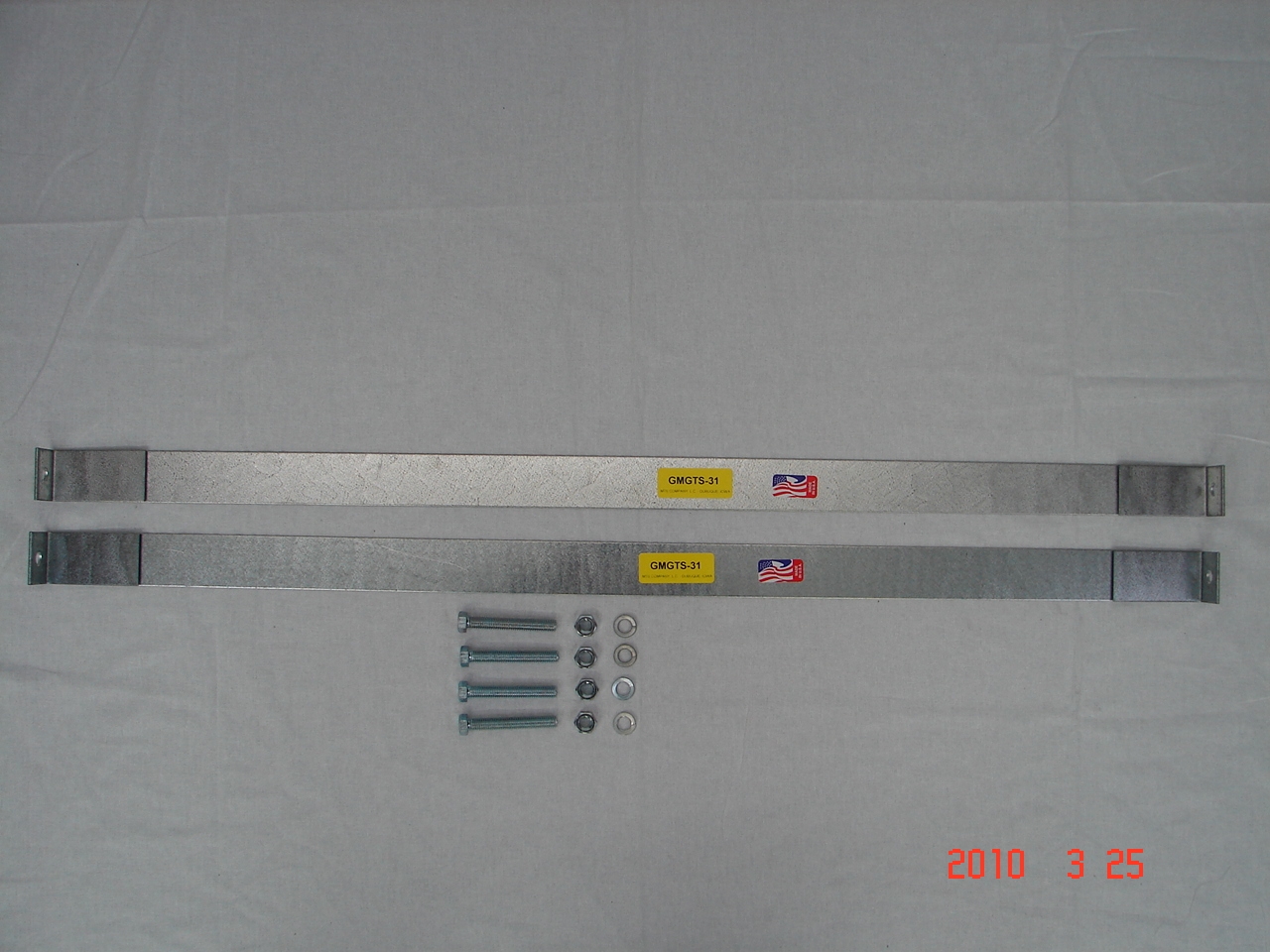

Strap # GMGTS-31
Lock ring # GMLR-1
O-ring # GMOR-1

2225A

1982-1991 Full-SizeChevy®/GMC® C/K Blazer/Suburban/Jimmy 25-gal. fuel tank with a built-in fuel bowl. Approx. dimensions 26 1/2" x 26 1/2" x 9 3/4".

Includes new lock ring and O-Ring. Replaces # 14050685.

Additional pictures: 1 3/4" Filler Neck & Fuel Bowl

Sending unit #

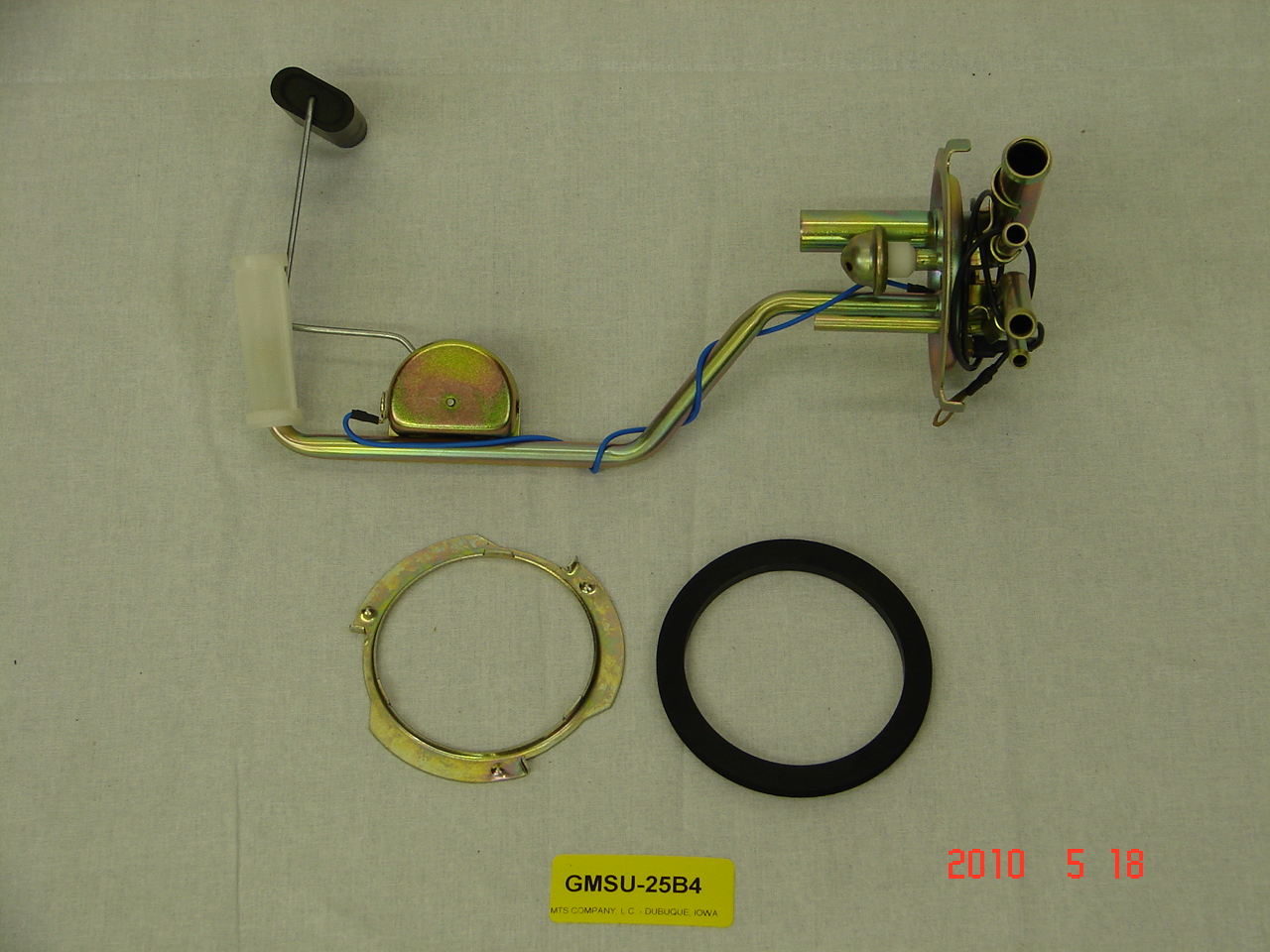

GMSU-25B4 ('82-'86 4 pipe)
Fuel pump # EFPK-3209
Strap # GMGTS-25
Lock ring # GMLR-1
O-ring # GMOR-1

2231A

1982 -1991 Full-Size Chevy®/GMC® C/K Blazer/Suburban/Jimmy 31-gal. fuel tank with a built-in fuel bowl. Approx. dimensions 26 1/2" x 26 1/2" x 13 1/4".

Includes new lock ring and O-Ring. Replaces #'s 14050684, 15615625, 15624668.

Additional pictures: 1 3/4" OD Filler Neck & Fuel Bowl

Fuel pump # EFPK-3209
Strap # GMGTS-31
Lock ring # GMLR-1
O-ring # GMOR-1

Chevy S-10 Pickup/Blazer, S-15 Pickup/Jimmy and Oldsmobile Bravada

Part # Description Related parts
2100

1982-1994 Chevy® S-10 and GMC® S-15 Pickup 20-gal. fuel tank with a built-in fuel bowl.
Approx. dimensions 12" X 39" X 13".

Includes new lock ring and O-ring. Replaces #'s 14024028, 15961070.

Sending Units

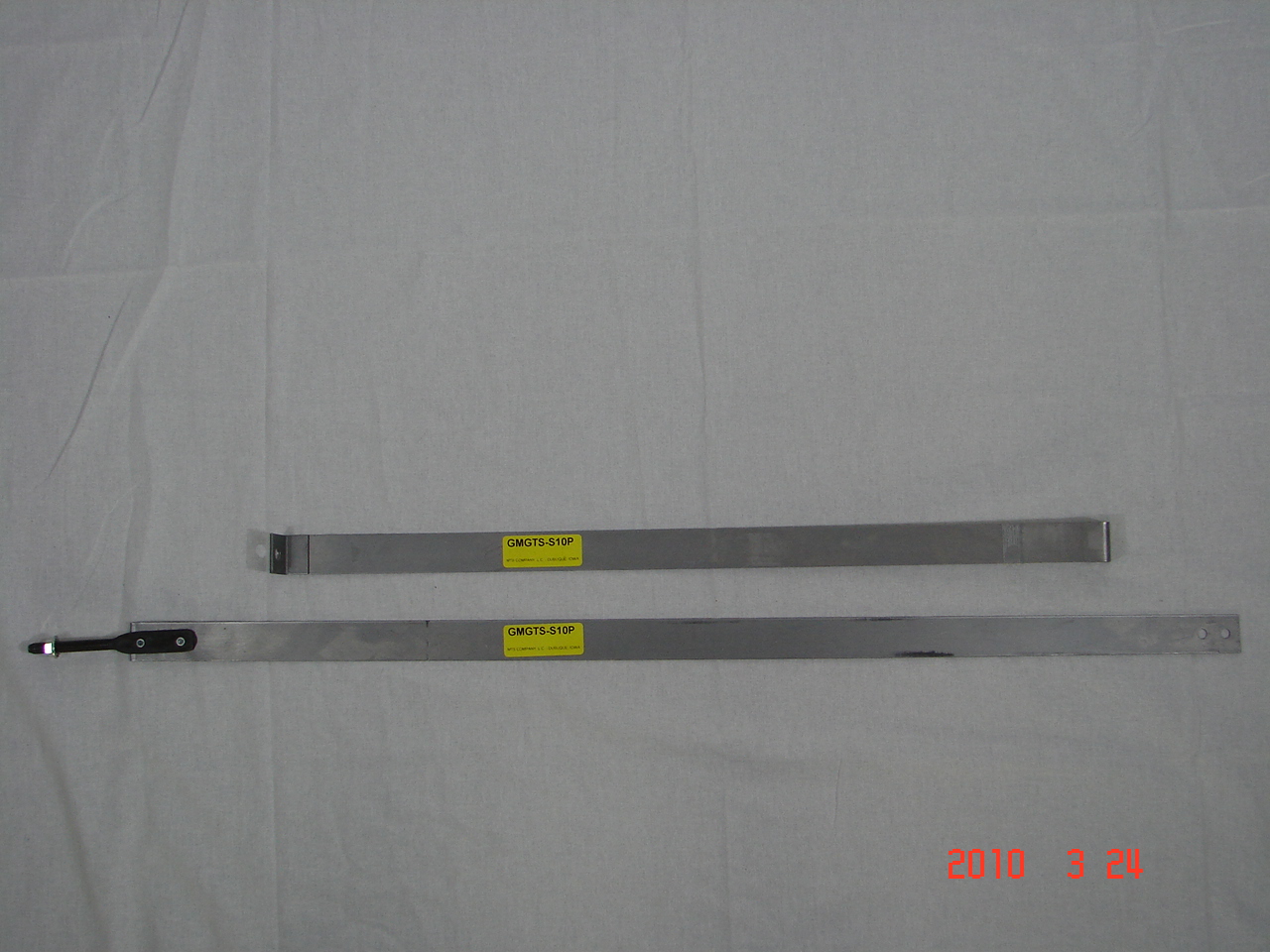

Strap # GMGTS-S10P
Lock ring # GMLR-1
O-ring # GMOR-1
2200

1983-1995 Chevy® S-10 Blazer and GMC S-15 Jimmy with 2-door (does not fit 4-door) 20-gal. fuel tank with a built-in fuel bowl. Approx. dimensions 19¾" x 31" x 11".

Includes new lock ring and O-ring. Replaces #'s 14041678, 15659269.

Sending Units

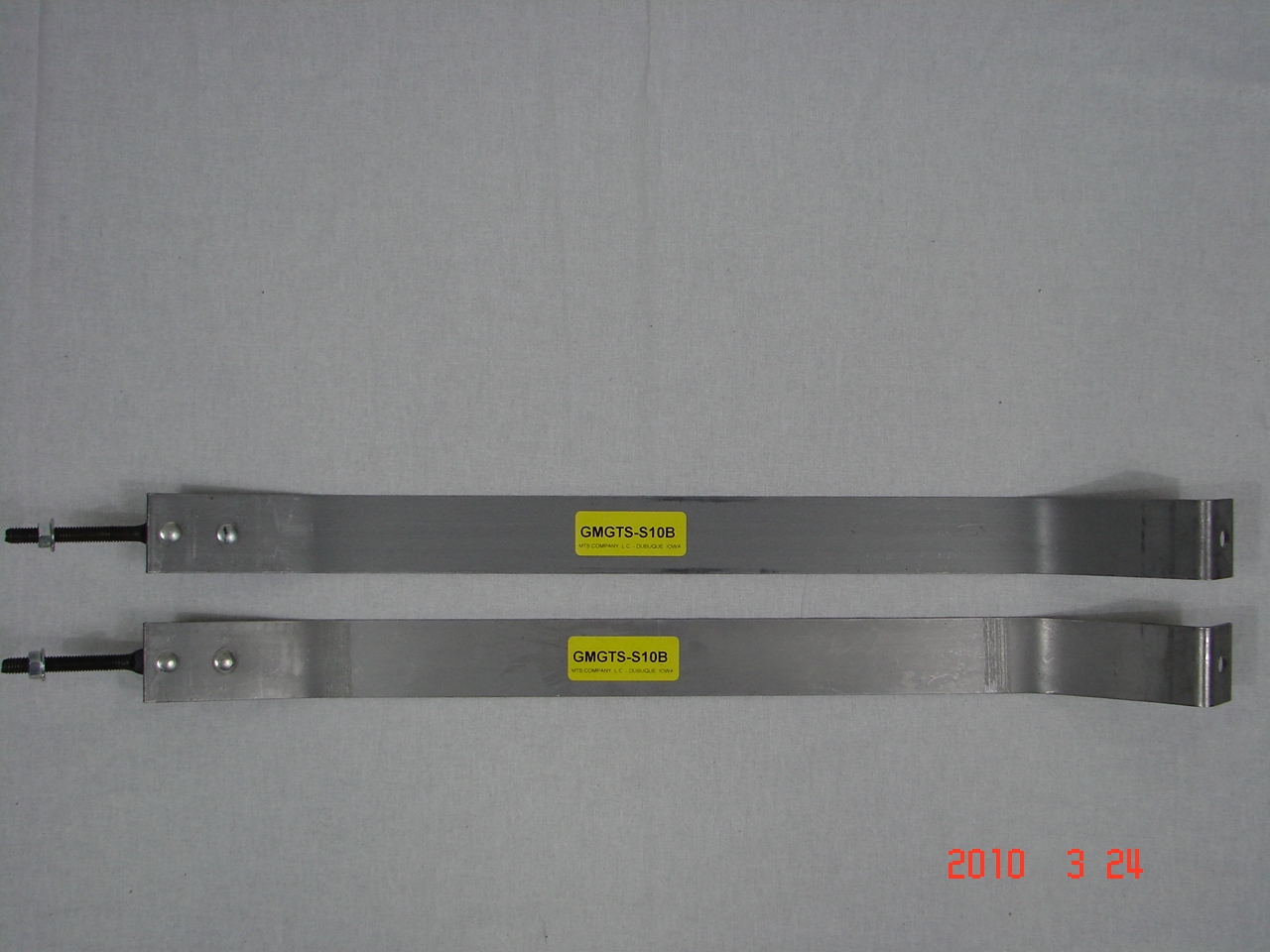

Strap # GMGTS-S10B
Lock ring # GMLR-1
O-ring # GMOR-1
2200B

1991-1994 Oldsmobile Bravada 20-gal. fuel tank with a built-in fuel bowl. Approx. dimensions 19¾" x 31" x 11".

Includes new lock ring and O-ring. Replaces #'s 14041678, 15659269.

Strap # GMGTS-S10B
Lock ring # GMLR-1
O-ring # GMOR-1
2201
**NEW**

This is the 13.5-gal. fuel tank with a built-in fuel bowl and fits the following vehicles:

1985-1987 Chevy® S-10 Blazer, GMC® S15 Jimmy L4 2.5L
1986-1987 Chevy® S-10 Blazer, GMC® S-15 Jimmy V6 2.8L

Approx. dimensions: 19¾" x 31" x 9 1/2".

Includes new lock ring and O-ring. Replaces #'s 15659270.

Lock ring # GMLR-1
O-ring # GMOR-1
2201G
**NEW**

This is the 13.5-gal. fuel tank with a built-in fuel bowl and fits the following vehicles:

1987-1993 Grumman® LLV L4 2.5L Postal Carriers
1994-1995 Grumman® LLV L4 2.2L Postal Carriers

Approx. dimensions: 19¾" x 31" x 9 1/2".

Includes new lock ring and O-ring. Replaces #'s 15659270.

Lock ring # GMLR-1
O-ring # GMOR-1

Chevy/GMC® Full-Size Pickup Hoses

Part # Description Related parts
GMFH-5C

1973-1978 Chevy® Full-Size C/K Series Pickup fuel tank filler hose for either the long or short Fleetside bed, without gas door. Replaces #'s 9985382 and 6272318.

*This fuel tank filler hose will work with both the 16-gal. and 20-gal., left/driver side or right/passenger side fuel tank.

**Approx. I.D.: 1 1/4" both ends.

UPC # 810160411949

Tank # 2050
Tank # 2050B
Sending unit # GMSU-2L
Sending unit # GMSU-2R
Strap # GMGTS-1
Hose Clamps #HC-63024

GMFH-5G

1973-1978 GMC® Full-Size C/K Series Pickup fuel tank filler hose for either the long or short Fleetside bed, without gas door. Replaces #'s 9985382 and 6272318.

*This fuel tnak filler hose will work with both the 16-gal. and 20-gal., left/driver side or right/passenger side fuel tank.

**Approx. I.D.: 1 1/4" both ends.

UPC # 810160411987

Tank # 2050
Tank # 2050B
Sending unit # GMSU-2L
Sending unit # GMSU-2R
Strap # GMGTS-1
Hose Clamps #HC-63024

GMFH-5FC

1973-1976 Chevy® Full-Size C/K Series Pickup fuel tank filler hose for the Stepside short bed.

*This fuel tank filler hose will only work on the LEFT/DRIVERS SIDE fuel tank.

Approx. I.D.: 1 1/4" both ends.

Additional picture: Hose & Tank

UPC # 810160411956

Tank # 2050B
Sending unit # GMSU-2L
Strap # GMGTS-1
Hose Clamps #HC-63024

GMFH-5FG

1973-1976 GMC® Full-Size C/K Series Pickup fuel tank filler hose for the Stepside short bed.

*This fuel tank filler hose will only work on the LEFT/DRIVERS SIDE fuel tank.

Approx. I.D.: 1 1/4" both ends.

Additional picture: Hose & Tank

UPC # 810160411994

Tank # 2050B
Sending unit # GMSU-2L
Strap # GMGTS-1
Hose Clamps # HC-63024

GMFH-5FRC

1973-1976 Chevy® Full-Size C/K Series Pickup fuel tank filler hose for the Stepside short bed.

*This fuel tank filler hose will only work on the RIGHT/PASSSENGERS SIDE fuel tank.

Approx. I.D.: 1 1/4" both ends.

Additional picture: Hose & Tank

UPC # 810160411963

Tank # 2050B
Sending unit # GMSU-2R
Strap # GMGTS-1
Hose Clamps # HC-63024

GMFH-5FRG

1973-1976 GMC® Full-Size C/K Series Pickup fuel tank filler hose for the Stepside short bed.

*This fuel tank filler hose will only work on the RIGHT/PASSSENGERS SIDE fuel tank.

Approx. I.D.: 1 1/4" both ends.

Additional picture: Hose & Tank

UPC # 810160411994

Tank # 2050B
Sending unit # GMSU-2L
Strap # GMGTS-1
Hose Clamps # HC-63024

GMFH-6C

1979-1981 Chevy® Full-Size C/K Pickup fuel tank filler hose for the Fleetside and Stepside bed, with gas door.

*This fuel tank filler hose will work with both the 16-gal. and 20-gal., left/driver side or right/passenger side fuel tank. It also fits the 4-Door Crew Cab Pickups.

Approx. I.D.: Short side: 1 3/8", Long side/flared end: 1 3/4". Replace's # 4000286.

UPC # 810160411970

Tank # 2050
Tank # 2050B
Sending unit # GMSU-2L
Sending unit # GMSU-2R
Strap # GMGTS-1
Hose Clamps #HC-63024

GMFH-6G

1979-1981 GMC® Full-Size C/K Pickup fuel fill hose for the Fleetside and Stepside bed, with gas door.

*This fuel tank filler hose will work with the 16-gal. and 20-gal., left/driver side or right/passenger side fuel tank. It also fits the 4-Door Crew Cab Pickups.

Approx. I.D.: Short side: 1 3/8", Long side/flared end: 1 3/4". Replace's # 4000286.

UPC # 810160412014

Tank # 2050
Tank # 2050B
Sending unit # GMSU-2L
Sending unit # GMSU-2R
Strap # GMGTS-1
Hose Clamps #HC-63024
